オプションコードリスト


■ オプションコードとは？
　アストロ/サファリ（'96〜）の助手席の扉には，開口部に "SERVICE PARTS IDENTFICATION / LISTE DES OPTIONS" と書かれたコード表が貼付されています（〜'95は，センターコンソールの中）。これは，アストロ/サファリが出荷されたときの装備一覧を示すコード表です。
　アストロ/サファリは，大半のものが，様々なカスタマイズが施された状態で販売されていますが，このコードを参照することによって，元々，どんな車両であったのかを調べることができます。

【注意】
  • 　このコードは，全GM車両に共通するコードです。そのコード群の中から，筆者が入手した一部のコードを記載しています。
  • 　多くのカスタム車両，特にローライダーの大半は，グランドエフェクトのパテ埋め＋全塗装が施されています。このため，多くの車両が出荷時と異なる塗装になっています。
  • 　コードについての質問には，お答えできないものが多くあります。筆者への問い合わせは，可能な限り控えてください。

,br>
■ オプションコード表の取り付け位置
  • 〜'95年式

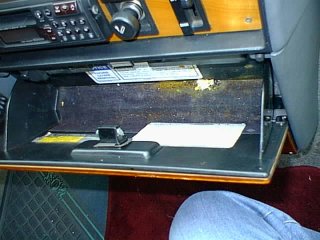

    車内のグローブボックス(22KB) 　95年までのアストロ/サファリは，車内のグローブボックス内にオプションコード表が貼付されています。
  • '96〜年式

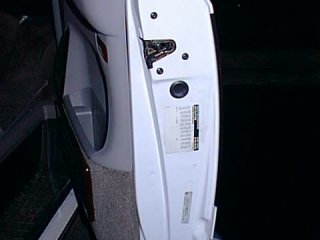

    助手席扉の開口部(11KB) 　96年以降のアストロ/サファリは，助手席側の扉の開口部にオプションコード表が貼付されています。
写真提供：林ちゃん


■ OPTION AND PROCESS CODES

AB2Window: Side Body Sta. Left Side
AG1Adjuster: Driver Seat 6-way
AG2Adjuster: Passenger Seat 6-way
AJ1Windows: Deep Tint, All Except W/S and Doors
AK5Inflatable Restraint: Driver and Passenger
AL4Seat: Rear Bucket
AN0Adjuster: Manual, 6-way, Lumber, Driver and Passenger
AN5Seat: Child Integral-Dual
AP9Net Convenience
AQ4Seat: Rear
AR1Restraint System: Delete
AU0Lock: Control, Remote Entry
AU3Lock: Side Door, Electric
AV5Seat: Frt. Bucket, High Back
A07Window: Body
A08Window: Body, Right Side
A12Window: Stationary Back Door
A13Window: Rear, Side Door Stationary
A18Window: Rear Door, Swing Out
A19Window: Rear Side Door, Swing Out
A31Window: Power Operated, Side
A57Seat: Passenger, Auxiliary, Folding
A78Adjuster: Frt. Seat Back, Manual, Passenger and Driver, Reclining
BALPlant Code: Baltimore, MD., GM T&B
BA8Compartment: Frt. Seat Stowage, Passenger
BX2Molding, Lower, Body Side
B37Covering: Floor Mats, Front and Rear, Aux.
B74Molding, Wheel Opening, Wide
B88Molding: Body Side, Ext. Custom
C36Heater: Auxiliary
C49Defogger: Rear Window, Electric
C5G5600 Lbs. GVW Rating
C5M6100 Lbs. GVW Rating
C6M5950 Lbs. GVW Rating
C69Air Conditioner: Rear
C7X5850 Lbs. GVW Rating
C95Lamp: Interior, Roof, Courtesy and Dual Reading
DH6Mirror: I/S, RH & LH, Sunshade, Illurm
DK6Console: Interior, Roof
D34Mirror: I/S Sunshade
D44Mirror: O/S, Painted
D48Mirror: O/S, Electric, Remote Control, Painted
E54Body Equipment: Door Rear, w/End Gate Window
FE2Suspension: System Ride, Handling
FE9Certification, Emissions, Federal
FG3Shock Absorbers: Front and Rear, Gas
F61Stabilizer Shaft: Rear
GT4Axle: Rear, 3.73 Ratio
GT5Axle: Rear, 4.10 Ratio
GT7Axle: Rear, 3.33 Ratio
GT8Axle: Rear, 4.10 Ratio
GU2Axle: Rear, 2.73 Ratio
GU4Axle: Rear, 3.08 Ratio
GU5Axle: Rear, 3.23 Ratio
GU6Axle: Rear, 3.42 Ratio
G80Axle: Rear, Positraction, Limited Slip
JM4Brake System: Power, Front Disc, Rear Drum, Four Wheel Antilock
K01Fan: Clutch Drive, On/Off
K05Heater: Engine Coolant
K34Cruise Control: Automatic, Electronic
K60Generator: 100 Ampere
K68Generator: 105 Ampere
L35Engine: 4.3 Liter V6, CPI
MX0Provisions: Automatic Transmission
M30Transmission: Hydra-Matic 4L60-E, 4-Speed Automatic, Electronic
NB6Emission System: California, Tier 1
NF2Emission System: Federal, Tier 1
NM8Fuel System: Leaded
NP5Steering Wheel: Leather Wrapped
N33Steering Column: Tilt Type
N40Steering, Power
N46Steering Wheel, Four Spokes
PA6Wheel: Styler, Painted
PC2Wheel: 15 x 6.5, Chrome, Styled
PF3Wheel: 15 x 6.5, Cast Aluminum
QCMTires: All, P215/75R15 WOL R/PE ST TL ALS 100S
QCUTires: All, P215/75R15 All Season Blackwall
QCVTires: All, P215/75R15 All Season White Stripe
QPZTires: All, P235/65R15 RWL R/PE ST TL AL2 100S
T61Lighting, Daytime Running
TL1Grille: Special
TR2Lamp: Turn Signal, Enlarged
TR6Headlamp Leveling: Manual
UC2Speedometer, Kilo and Mailes, Kilo Odometer, Positive Bias
UD4Alarm: Vehicle Speed, 120k/h
UK1Frequencies: Japanese Ratio
UK6Radio Control: Real Seat and Earphone Jacks
UL0Radio: AM/FM Stereo, Seek/Scan, Auto Rev. Cas.
UL2Frequencies: European Radio
UL5Radio: Delete
UM6Radio: AM/FM Stereo, Seek/Scan, Auto Reverse Cassette, Clock, ETR
UM7Radio: AM/FM Stereo, Seek/Scan, Clock, ETR
UN0Radio: AM/FM Stereo, Seek/Scan, CD
UP0Radio: AM/FM Stereo, Seek/Scan, Auto Rev. Music Search Cass., CD
UQ1Radio Provisions: For Stereo
UW3Radio: AM/FM Stereo, Seek/Scann, Auto Rev. Music Search Cass.
UY7Wiring Harness: Trailer, HD
U19Speedometer: Inst. Kilo & Miles, Kilo Odometer
U73Antenna: Fixed
VR4Trailer Hitch: Weight Distributing Platform
V10Provisions Options: Cold Climate
V54Luggage Carrier: Roof, Painted
XCMTire: Front, P215/75R15 WOL R/PE ST TL ALS 100S
XCUTire: Front, P215/75R15/N BL R/PE ST TL ALS
XCVTire: Front P215/75R15 All Season Steel Belted Radial White Stripe
XPZTire: Front, P235/65R15 RWL R/PE ST TL AL2 100S
X88Conversion Name Plate: Chevrolet
YB9Paint Process: Interior, Delete
YCMTire: Rear, P215/75R15 WOL R/PE ST TL ALS 100S
YCUTire: Rear, P215/75R15 All Season Steal Belted Radial Blackwall
YCVTire: Rear, P215/75R16 All Season Steal Belted Radial White Stripe
YC5Convenience Package: Decor Level #5, Consists of: D44, D48, D34, UM7, VE6, ZP5
YC6Convenience Package: Decor Level #6, Consists of: ANL, B37, B88, D64, TR9, VE6, ZJ7
YC7Convenience Package: Decor Level #7, Consists of: AJ1, ANL, A78, B37, B88, D64, D96, TL1, TR9, E6, ZJ7, ZW6
YD3Axle: Front, Base Equipment
YD5Spring: Front, Base Equipment
YD6Spring: Rear, Base Equipment
YE1Convenience Pkg., Decor Level 1, Base Trim
YE2Convenience Pkg., Decor Leel2, Low Trim
YE3Convenience Pkg., Decor Leel3, High Trim
YF5Emissions, California
YF7Sales Package: Recreational Vehicle (RV) Upfitter Package
YPZTire: Rear, P235/65R15 RWL R/PE ST TL AL2 100S
ZJ7Wheel: Special Hub Cap and Trim Ring
ZP5Seating Arrangement: Five Passenger
ZP7Seating Arrangement Seven Passenger
ZP8Seating Arrangement Eight Passenger
ZW2Window Package: Rear Doors
ZW3Window Package: Side Rear Door and Rear Doors
ZW6Window Package: Complete Body
ZW9Body Equipment: Base Body or Chassis
ZX1Seating Arrangement: Driver Only, High Back
ZX2Seating Arrangement: Driver and Passenger, High Back
ZY1Color Combination: Solid
ZY2Color Combination: Two Tone
ZY3Color Combination: Special Two Tone
Z49Export: Equipment, Canadian Mandatory
Z82Trailer Provisions: Special Equipment, H.D.
Z88Conversion, GMTB
01AStripe, Accent, Sliver/Gunmetal
01UPrimary Color: Exterior, Special
10LSecondary Color: Exterior, Ghost White
10UPrimary Color: Exterior, Ghost White
13GTrim Combination: Cloth, Light Gray
13HTrim Combination: Cloth, Light Smoke Gray
13IInterior Trim: Light Smoke Gray
13WTrim Combination: Vinyl, Light Gray
15LSecondary Color: Exterior, Astral Silver
15QMolding Color: Astral Silver
15UPrimary Color: Exterior, Astral Silver
16AStripe: Color Accent, Two Tone, Sliver/Teal
25AStripe: Color Accent, Two Tone, Beige/Teal
26GTrim Combination: Cloth, Navy
26IInterior Trim: Navy
26WTrim Combination: Vinyl, Navy
34LSecondary Color: Exterior, Light teal Metallic
34UPrimary Color: Exterior, Light Teal Metallic
36LSecondary Color: Exterior, Medium Dark Teal Metallic
36QMolding Color: Medium Dark teal Metallic
36UPrimary Color: Exterior, Medium Dark Teal Metallic
37LSecondary Color: Exterior, Md Stellar Blue Metallic
37QMolding Color: Med Stellar Blue Metallic
37UPrimary Color: Exterior, Med Stellar Blue Metallic
41LSecondary Color: Exterior, Black
41UPrimary Color: Exterior, Black
43UPrimary Color: Exterior, Emerald Green
47LSecondary Color: Exterior, Med Dk Lichen
47UPrimary Color: Exterior, Med Dk Lichen
5CUTire: All, P215/75R15N BW R/PE ST TL ALS
52GTrim Combination: Cloth, Lt Neutral
52HTrim Combination: Cloth, Med Neutral II
52IInterior, Trim, Lt Neutral
52WTrim Combination: Vinyl, Lt Neutral
55AStripe: Color Accent, Gold
55LSecondary Color: Exterior, Light Autumnwood Metallic
55QMolding Color: Light Autumnwood Metallic
55UPrimary Color: Exterior, Light Autumnwood Metallic
59LSecondary Color: Exterior, Red Maple II
59QMolding Color: Red Maple Metallic
59UPrimary Color: Exterior, Red Maple II
6UAComponent: Front LH Computer Sel Susp
6UBComponent: Front LH Computer Sel Susp
6UCComponent: Front LH Computer Sel Susp
6WBComponent: Front LH Computer Sel Susp
6WCComponent: Front LH Computer Sel Susp
6WDComponent: Front LH Computer Sel Susp
6WFComponent: Front LH Computer Sel Susp
65AStripe: Color Accent, Two Tone, Light Beige/Dark Brown
7UAComponent: Front RH Computer Sel Susp
7UBComponent: Front RH Computer Sel Susp
7UCComponent: Front RH Computer Sel Susp
7WBComponent: Front RH Computer Sel Susp
7WCComponent: Front RH Computer Sel Susp
7WDComponent: Front RH Computer Sel Susp
7WFComponent: Front RH Computer Sel Susp
76LSecondary Color: Exterior, Dark Garnet Red Metallic
76UPrimary Color: Exterior, Dark Garnet Red Metallic
79GTrim Combination: Cloth, Ruby Red
79IInterior Trim: Ruby Red
79WTrim Combination: Vinyl, Ruby Red
8R1Headliner: Delete
80UPrimary Color: Exterior, Med Quasar Blue Metallic
9H7Carrier: Spare Tire with Hoist, Delete
90AStripe: Color Accent, Med Gray
